Non-Destructive Testing (NDT): Types, Methods, Importance

Non-Destructive Testing (NDT) is an important technique used in civil engineering and construction to evaluate the quality, integrity, and condition of materials and structures without causing significant damage to the tested component. It helps engineers identify potential defects, assess structural conditions, and make informed decisions about safety, maintenance, and repair.

In modern construction, Non-Destructive Testing is widely used for concrete structures, buildings, bridges, industrial facilities, and other infrastructure projects. These testing methods help construction professionals evaluate material properties and detect internal or surface defects while preserving the usability of the structure.

RK Soil Lab supports construction and geotechnical investigation requirements by helping project teams understand the importance of reliable testing and quality assessment for construction projects.

What Is Non-Destructive Testing (NDT)?

Non-Destructive Testing refers to a group of inspection and testing methods used to examine materials, components, and structures without destroying or significantly damaging them.

Unlike destructive testing, which may require a specimen to be broken or damaged, NDT techniques allow engineers to inspect existing structures and assess their condition with minimal intervention.

In civil engineering, NDT is commonly used to evaluate concrete quality, identify possible cracks and voids, assess reinforcement location, and investigate the condition of existing structures. The appropriate method depends on the material, structure, purpose of inspection, and applicable technical standards.

Importance of Non-Destructive Testing in Construction

Quality control is essential for ensuring the durability, reliability, and serviceability of construction projects. NDT provides useful information about the condition of construction materials and structural components.

The major benefits of Non-Destructive Testing include:

• Structural Assessment: Helps engineers evaluate the condition of existing concrete and other structural materials.

• Defect Detection: Assists in identifying certain internal or surface defects, depending on the method used.

• Quality Control: Supports construction quality checks and material assessment.

• Reduced Damage: Allows inspection without significantly damaging the tested component.

• Maintenance Planning: Helps identify areas requiring further investigation, repair, or monitoring.

• Cost Management: Can help reduce unnecessary invasive investigation when used as part of a suitable assessment programme.

• Safety Evaluation: Provides information that engineers can use when assessing structural condition and planning appropriate action.

NDT results should be interpreted by qualified professionals and, where necessary, combined with other tests and engineering assessments.

Types of Non-Destructive Testing in Civil Engineering

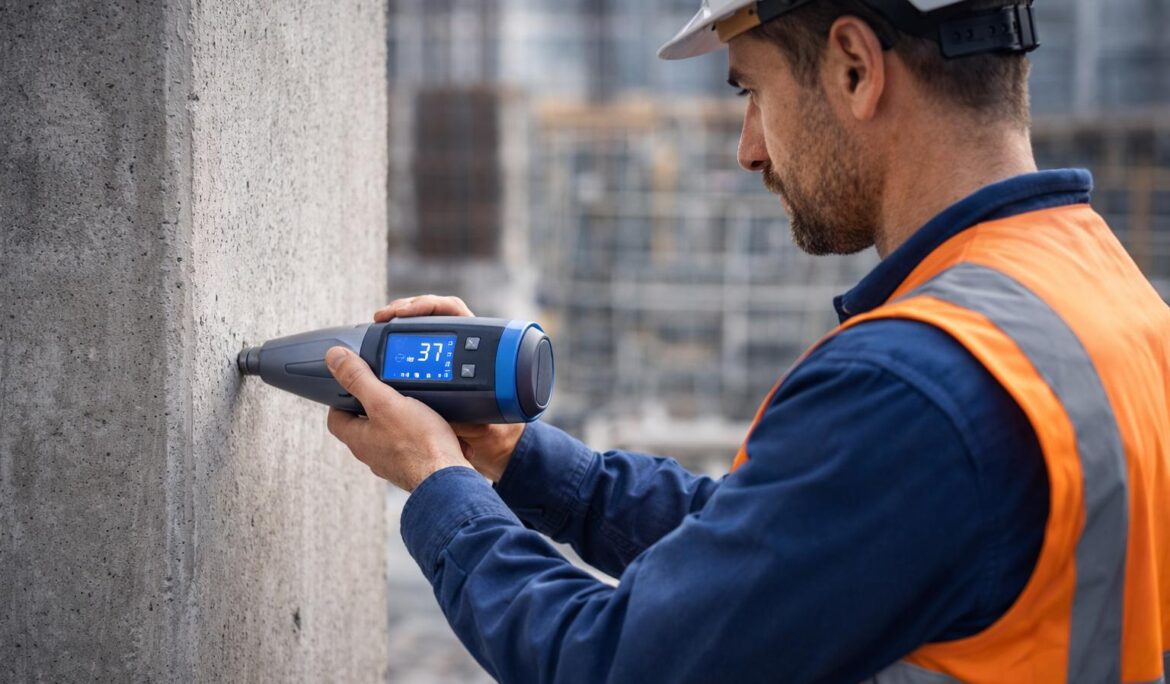

1. Rebound Hammer Test

The Rebound Hammer Test is a commonly used method for assessing the surface hardness of concrete. A spring-driven mass impacts the concrete surface, and the rebound response is measured.

The test can provide an indication of concrete uniformity and surface hardness. However, rebound values alone should not be treated as a definitive measurement of compressive strength without appropriate correlation and supporting information.

2. Ultrasonic Pulse Velocity (UPV) Test

The Ultrasonic Pulse Velocity Test measures the time taken by an ultrasonic pulse to travel through concrete. The measured velocity can help assess concrete uniformity and identify areas that may require further investigation.

UPV testing can assist in evaluating concrete quality and detecting possible discontinuities, cracks, or voids. Results depend on factors such as moisture conditions, concrete composition, reinforcement, and test arrangement.

3. Concrete Core Testing

Concrete core testing involves extracting a cylindrical specimen from an existing concrete structure for laboratory evaluation. Because it involves sampling and leaves a small opening that requires appropriate repair, it is not strictly a non-destructive method.

Core testing is often used alongside NDT methods to obtain additional information about concrete properties and help validate assessment findings.

4. Cover Meter Test

A Cover Meter Test is used to estimate the location and depth of reinforcement beneath a concrete surface. Depending on the instrument, it can also provide an estimate of reinforcing bar size under suitable conditions.

This method helps engineers assess reinforcement cover and investigate whether the reinforcement arrangement is consistent with design requirements.

5. Ground Penetrating Radar (GPR)

Ground Penetrating Radar uses electromagnetic waves to investigate subsurface features. In concrete structures, it can help locate reinforcement, embedded objects, and certain internal features.

GPR is also used in selected pavement, bridge deck, and infrastructure investigations. Interpretation depends on material conditions, equipment settings, and the experience of the operator.

6. Half-Cell Potential Test

The Half-Cell Potential Test is used to assess the likelihood of corrosion activity in reinforcing steel embedded in concrete under suitable testing conditions.

It measures electrical potential differences between reinforcement and a reference electrode. The readings indicate the probability of corrosion activity rather than directly measuring the corrosion rate or remaining reinforcement strength.

7. Impact Echo Test

Impact Echo is a stress-wave-based method used to investigate certain internal features of concrete elements. It can help identify possible voids, delamination, thickness variations, or other discontinuities when appropriate procedures and interpretation are used.

8. Infrared Thermography

Infrared Thermography uses thermal imaging to identify temperature variations on a surface. Under suitable conditions, these variations can help identify areas of possible moisture intrusion, delamination, or other anomalies requiring further investigation.

The results depend on environmental conditions, surface properties, and the depth and nature of the suspected defect.

Non-Destructive Testing Procedure

The testing procedure varies according to the selected method and the project requirements. A typical NDT assessment involves the following steps:

Step 1: Initial Inspection

The structure or component is visually inspected, and the purpose of testing is established.

Step 2: Selection of the Testing Method

The appropriate technique is selected according to the material, suspected defects, accessibility, and relevant standards.

Step 3: Equipment Preparation

The testing instrument is checked, calibrated or verified as required, and prepared for use.

Step 4: Surface Preparation

The test area is prepared according to the method. Some tests require a clean, smooth surface or suitable coupling materials.

Step 5: Field Testing

Measurements are taken at designated locations using the approved test procedure.

Step 6: Data Recording and Analysis

Observations and readings are recorded and evaluated in accordance with the selected method and relevant technical guidance.

Step 7: Reporting and Recommendations

A technical report presents the test method, locations, observations, results, limitations, and recommendations for any additional investigation required.

Applications of NDT in Civil Engineering

Non-Destructive Testing is used in a wide range of construction and infrastructure applications, including:

• Residential and commercial buildings

• High-rise structures

• Bridges and flyovers

• Concrete roads and pavements

• Industrial buildings and factories

• Dams and water-retaining structures

• Parking structures

• Existing buildings undergoing condition assessment

• Repair and rehabilitation projects

• Infrastructure maintenance and quality control

The selection of a suitable NDT technique depends on the specific engineering question being investigated.

Non-Destructive Testing Services in Lucknow

Lucknow’s residential, commercial, institutional, and infrastructure developments create a need for reliable construction quality assessment and structural investigation.

NDT can help engineers and project owners evaluate existing concrete structures, investigate suspected defects, and plan maintenance or rehabilitation work. The appropriate testing method should be selected according to the project requirements and the condition of the structure.

RK Soil Lab supports soil testing and geotechnical investigation requirements for construction projects. For concrete and structural NDT requirements, clients should confirm the specific testing methods, equipment, technical expertise, and service availability before scheduling an inspection.

Difference Between Destructive and Non-Destructive Testing

Feature	Non-Destructive Testing	Destructive Testing
Damage to specimen	Generally avoids significant damage	Specimen may be damaged or broken
Main purpose	Assess condition or detect defects	Measure properties using a test that may damage the specimen
Typical examples	Rebound hammer, UPV, cover meter	Concrete cube compression test, core compression test
Application	Existing structures and field assessment	Laboratory testing and material strength evaluation
Limitations	Results depend on method and interpretation	May require specimen preparation and removal

Both approaches can be useful in construction quality assessment. The choice depends on the required information, applicable standards, and project conditions.
